Network (Ethernet) - Data Logger Connection:

Network Data Logger connection

Overview:

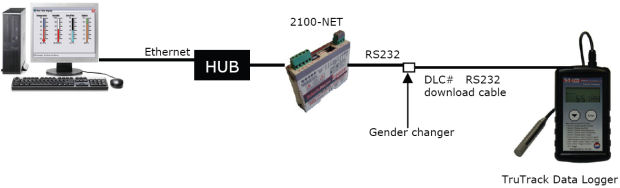

Connection to a TruTrack logger across a local area network (LAN) or wide area network (WAN) is possible using the Intech Micro 2100-NET Ethernet to Serial converter. This allows for continuous monitoring over distances limited only by the extent of the network!
Note: OmniLog can only connect to a single TruTrack logger across the network.

Once the 2100-Net is operating correctly on the network, OmniLog needs to have the IP address and port number entered under Tools > TCP/IP Network Control.
OmniLog Default IP address is: 192.168.1.109
OmniLog Default Port number is: 10001
