Product Specifications:
Download GP-HR Data Logger Datasheet
Download GP-MC Data Logger Datasheet
Environmental Monitoring Systems are fully scalable, providing the flexibility of monitoring only the inputs needed for a given application. The systems use our popular and well tested general purpose data loggers (GP-HR or GP-MC), which means that inputs other than weather types can also be logged if required [E.g. 4~20mA or Voltage signal(s)]!
Model |
Description |
| GP-HR-LB | GP-HR in L-Bar with attachment plate and two 50mm U bolts |
| Options: | |
| add any three of the following | add Ground Temp add Air Temp and Humidity in Shield (Note: counts as two channels) add Leaf Wetness add Solar Radiation add Wind Direction add 4~20mA input add Voltage input |
| add any one of the following | add Windspeed add Rain Gauge input add 1mm Rain Gauge add 0.2mm Rain Gauge |
| Add download cable: SWDL-DLC3USB SWDL-DLC3 DLC3USB DLC3 |
OmniLog Software and DLC3USB download cable Kit (USB) OmniLog Software and DLC3 download cable Kit (RS232) Spare DLC3USB download cable (USB) Spare DLC3 download cable (RS232) |
| Additional Options: | |
| T-Bar | If you require Windspeed and Direction, use a T-Bar rather than an L-Bar |
More information on the GP-HR general purpose data logger >>
Optional IP66 Logger Enclosure ^
Model |
Description |

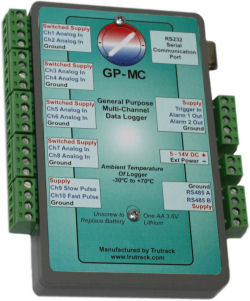

| GP-MC | 10 Input Multi Purpose Data Logger Option; IP66 Weatherproof Logger enclosure add External Socket on Logger enclosure |
| Options: | |
| add any eight of the following | add Ground Temp add Air Temp and Humidity in Shield (Note: counts as two channels) add Leaf Wetness add Solar Radiation add Wind Direction add 4~20mA input add Voltage input |
| add any two of the following | add Windspeed add Rain Gauge input add 1mm Rain Gauge add 0.2mm Rain Gauge |
| add any five of the following | add Air Temp, Humidity, Pressure in Radiation Shield add Air Temp, Humidity in Radiation Shield |
| Mounting | add L-Bar with attachment plate and two 50mm U bolts add T-Bar with attachment plate and two 50mm U bolts |
| Add download cable: SWDL-DLC5USB SWDL-DLC5 DLC5USB DLC5 |
OmniLog Software and DLC5USB download cable Kit (USB) OmniLog Software and DLC5 download cable Kit (RS232) Spare GP-MC download cable (USB) Spare GP-MC download cable (RS232) |
More information on the GP-MC multi purpose data logger >>
