IN-P - Multifunction Indicator with relay output options:

Product Specifications:

Download IN-Series Process Indicators Sales Brochure

Download Installation Guide

Description:

The IN-P is a multifunctional indicator which not only interfaces smoothly with a wide range of PLC and monitoring systems, but also as a stand alone unit for single and multi input Indication - Alarm - Control. Setup and calibration is simple, with on-screen, step-by-step instructions. The IN-P has a
6-digit LED display, 6 set-points and 5 front panel buttons for easy setup and operator interface.
Up to 6 relay outputs, an analogue output and/or an RS485/RS232/Ethernet port can also be added.

Features:

• Simple setup and calibration.
• On Screen Step by Step Instructions.
• 5 Buttons for easy Operator Interface.
• 6 Digit LED Display.
• Option to add up to 6 Relay outputs.
• Analogue Output Retransmission option.
• Serial RS485/RS232 port option with Modbus RTU.
  Ethernet port option with Modbus TCP.
• Wide Range of Power Supply options from 10V to 265V.
• Multiple functions available for customising to your application.

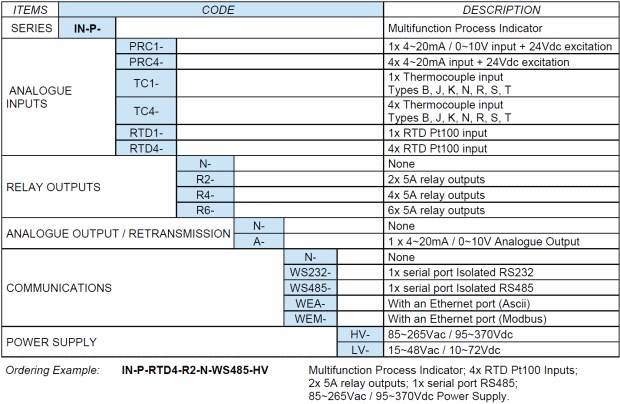

Ordering Information:
