IN-RTB - Flow Rate Indicator and Batching Controller with relay output options:

Product Specifications:

Download IN-Series Process Indicators Sales Brochure

Download Installation Guide

Click for large view


The IN-RTB controller is the ideal solution for a variety of flow rate and batching applications. This controller, with four relay outputs, has been designed for ease of use, with intuitive, scrolling text prompts that guide you step-by-step through the setup process. The front panel includes two rows of
6-digits and five front-panel buttons, for simple operator interface. The dual display allows you to view total and flow rate simultaneously. Up to four relay outputs, an analogue output and/or an RS485/RS232 serial port can also be added.


Ordering Information:


Standard calibration Flow Rate and Batching Controller; 4x 5A relay outputs, 85~265Vac / 95~370Vdc Power supply.

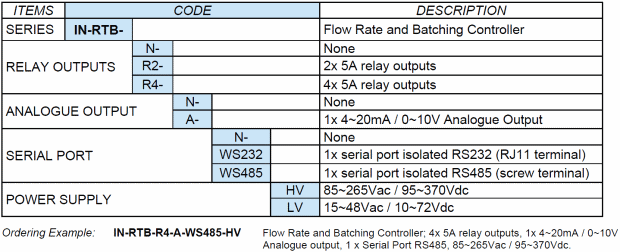

IN-RTB ordering table
