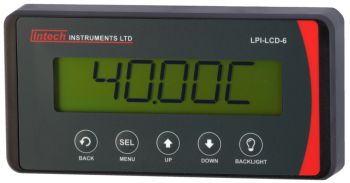

LPI-LCD-6 - 4~20mA Panel Display:

Product Specifications:

Download Sales Brochure

Download Installation Guide

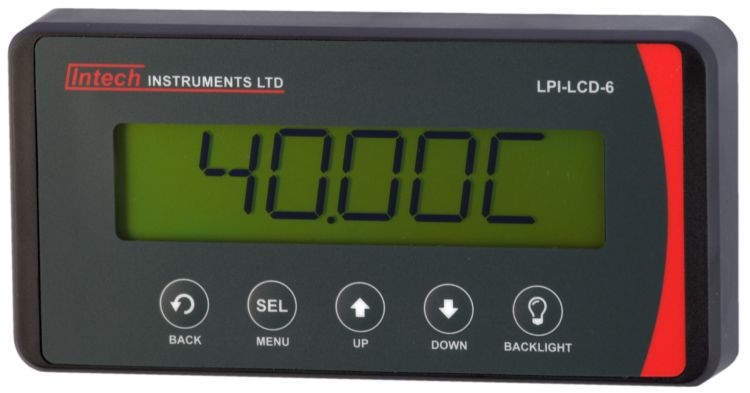

Click for large view

Description:

The LPI-LCD-6 - 4~20mA Panel Display is ideal for displaying a variety of process variables, and is easy to scale to your required engineering units.

Features:

• Easy installation (front mounting unit takes up virtually no space behind the panel).
• Loop powered display backlight.
• Protection against reverse wiring and accidental 24V supply.
• Easy calibration via on-screen menu.

Ordering Information:

LPI-LCD-6

One 4~20mA Loop Powered Input Panel Mount Display.

Specifications:

Input configuration:		4~20mA Loop Powered.
	Minimum Input:	3.5mA.
	Maximum Input:	100mA.
	Load:	220Ω Typical.
Full scale range:		Adjustable Between -99,999 and +999,999.
Max Resolution:		50,000 Counts.
A/D Conversion:		16bit Sigma Delta.
Accuracy:		±0.02%.
Temperature Coefficient:		30ppm/°C Typical.
Conversion Rate:		10 Readings per Second.
Protection:		Reverse Polarity. Accidental 24V Supply.
Display:		Liquid crystal display (LCD) 17.5mm.
	Units:	Standard KG, LB, T, or Custom.
	Decimal point:	Up to 4 Decimal Places.
	±Over-Range:	Shows ‘UNDER’ or ‘OVER’.
Operating temperature:		-10°C to +60°C.
Relative humidity:		10~85%RH (non-condensing).
Power Supply:		Designed to be powered from the 4~20mA current loop input signal.
Display:		17.5mm LCD.
	Units:	Standard KG, LB, T or Custom.
	Decimal:	Up to 4 Decimal Places.
	±Over-Range:	Shows 'UNDER' or 'OVER'.
Housing:		Rating IP65.
Case dimensions:		144 x 72 x 25mm (WxHxD).
