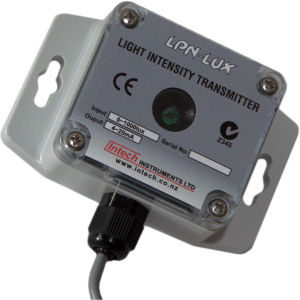

LPN-LUX - Light Intensity Transmitter:

Product Specifications:

Download Installation Guide

Download Print Quality Image - 0.26MB.

Replaces the TWN-LUX - Light Sensor.

Description:

The LPN-LUX incorporates an integrated light sensor, in an industrial IP66 rated sealed enclosure, and is especially designed for high precision linear applications. The sensor has a flat glass window with a built in colour correction filter, giving an approximation to the spectral response in the human eye.

Features:

• Various Lux Ranges Available.
• High Accuracy.
• IP66 Enclosure.
• Low Cost.
• Easy to Install.
• Reverse Polarity Protection.

Ordering Information:

LPN-LUX	Standard Calibration: 0~1000lux Nominal.
	Special Calibration Ranges available: 0~100, 0~500, 0~5000, 0~10000lux.

Specifications:

Input		0~1000lux - Standard Calibration.
Output	Current	2 wire 4~20mA (Loop Powered).
	Load Resistance	600Ω @ 24Vdc.
Temperature Coefficient		0.15% per 1°C.
Operating Temperature		0~60C (Storage Temp. -20~80C).
Operating Humidity		5~85% RH Max. Non-Condensing.
Analogue/Digital Converter		12 Bit.
EMC Compliances		Emissions EN 55022-A. Immunity EN 50082-1.
Safety Compliances		EN 60950.
Cable Length		2m.
Enclosure	Type	Polycarbonate.
	Ratings	IP66 rated, RoHS Compliant, UL 94 HB Flammability Rating.
	Dimensions	L=64mm, W=58mm, H=35mm (Length including mounting flanges = 94mm).

---
