LPN-R-H - RTD Pt100 In-Head Transmitter:
Product Specifications:
Download Installation Guide
For information on the older LPN-R-H version.
Features:
- Field Programmable.
- Pt100 RTD Standard Input.
- High Accuracy 0.1%.
- Linear With Temperature.
- LED Indication of Loop Current (CL).
- Low Cost.
- Easy to Install.
- Compact Industrial Head Mount Enclosure.
- Dual mounting holes for 33mm or 40mm.
- Available Standard or Special Calibration.
- Reverse Polarity Protection.
- Also Available in Conduit Box, or with DIN Rail Mount Foot.

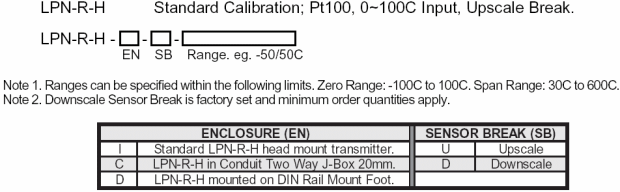

Ordering Information:

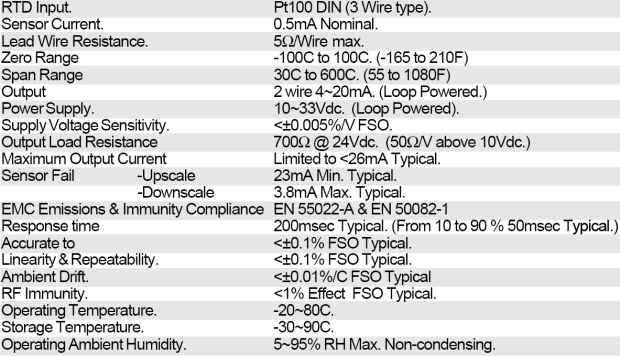

Specifications:
