PSW-10 - Adjustable Output Voltage, 1A Instrument Power Supply:

Product Specifications:

Download PSW Sales Brochure

Download Installation Guide

Description:

The PSW-10 is an isolated switch mode power supply that can supply a wide range of DC output voltages, from 5V to 30V, up to 1A continuously, and operates over a range of input voltages. Due to recent advancements in Switch Mode Power Supply technology, special techniques have been developed that make the PSW-10 both very low noise (typically less than 1mV) and high precision.

Both line and load regulation is better than 0.1% over all conditions (within specified ranges). These attributes make the PSW-10 better than most comparable linear power supplies.

Features:

• Better than most comparable linear supplies
• Input Voltage Supply of 100~264Vac
• Output adjustable from 5V to 30V
• Output current of 1A
• Low noise
• Precision regulation
• Isolated output floats close to earth potential
• Short circuit tolerant
• High accuracy 0.1%
• Universal AC/DC power supply
• Compact DIN rail mount enclosure
• Available standard or special calibration
• Low cost

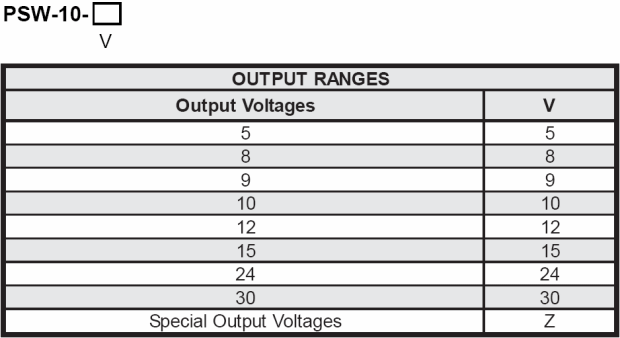

Ordering Information:

PSW-10-X

Standard Unit: High Voltage Power Supply: 100~264Vac. Output Voltage: 24Vdc.

Note: The PSW-10 has an Input Voltage Power Supply of 100~264Vac.

---
