2100-AO - Analogue Output Multiplexer for PLC; and Remote Station:

Product Specifications:

Download Installation Guide

Download Configuration Software

Features:

• Cost Effective PLC Analogue Output Expansion.
• 8 AO Require Only 7 PLC Digital Outputs.
• Each Additional 2100-AO Used Requires Only 1 Extra PLC Digital Output.
• 4, 8, or 12 bit AO Resolution Selectable.
• BCD or Clock/Reset AO Channel Selectable.
• 8 Analogue Outputs: mA or V.
• 8 Analogue Inputs: mA or V.
• 8 PID on Board Controllers - Future Development.
• 12 Bit Resolution.
• 12 Digitally Isolated, Optocoupler Inputs.
• 4 Digital Inputs:
  • State or Count.
  • Speeds up to 50Hz.
• 2 Digital, Mains Isolated, Relay Outputs.
• 1 AI can be Demultiplexed to 8 AO.
• 8 AI can be Multiplexed to 1 AO.
• RS422/RS485 Up to 1200m.
• RS232 Cost Effective Radio Installation.
• RS232 Cost Effective PC or PLC AI or AO Expansion.
• Selectable Baud Rates.
• Easy Programming Via MicroScan Maps.
• Programmable Station Number.
• Programmable Relay States - NO or NC.
• Comms Failure Time-out Using Relay 2.
• Comms TXE and TX Delay Programming.
• Programming Information Retained on Power Down.
• Universal AC/DC Power Supply.
• Easy to Install.
• Compact DIN Rail Mount Enclosure.

Description:

This station provides economical analogue output expansion for PLC's plus is also designed for use as a Remote Station.

The 8 analogue outputs are factory configurable as 4~20mA, 0~20mA, 0~10Vdc, 2~10Vdc.

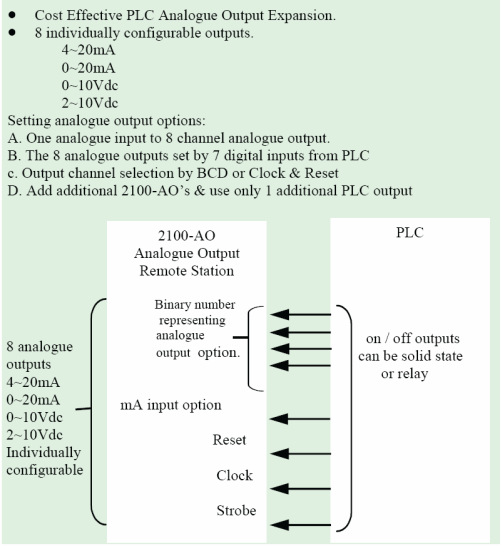

PLC Application:

The 2100-AO is driven by the PLC to determine the output channel and the output level. Here are 2 options for connecting between the PLC and 2100-AO.

Option 1: Using one analogue output from the PLC plus 4 on/off outputs.

Option 2: Using 7 on/off outputs from the PLC (no analogue output required).

For further details, please refer to the Installation Guide.

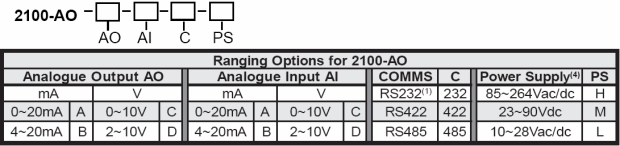

Ordering Information:

2100-AO-X

Standard Unit: All Analogue Inputs and Outputs 4~20mA. RS485 Comms, 85~264Vac/dc Power Supply.

Note 1: The RS232 Comms. version comes complete with a RS232 kit, required for connecting the
2100-AO to a PC, etc. The kit contains: 1 x 5m RS232 cable; (2, 10 & 15m available.) 1 x 9pin D type (25pin D type available).
Note 2: The 2100-AO is factory set to RS232 or RS422/485. The 2100-AO-X is field selectable for RS422 or RS485, and H or M power supply.
Note 3: The Analogue Output and Analogue Input ranges are factory set. They cannot be reconfigured in the field.
Note 4: Power supply 'H' is field selectable for 'M'; and 'M' for 'H'. Power supply 'L' must be ordered separately.

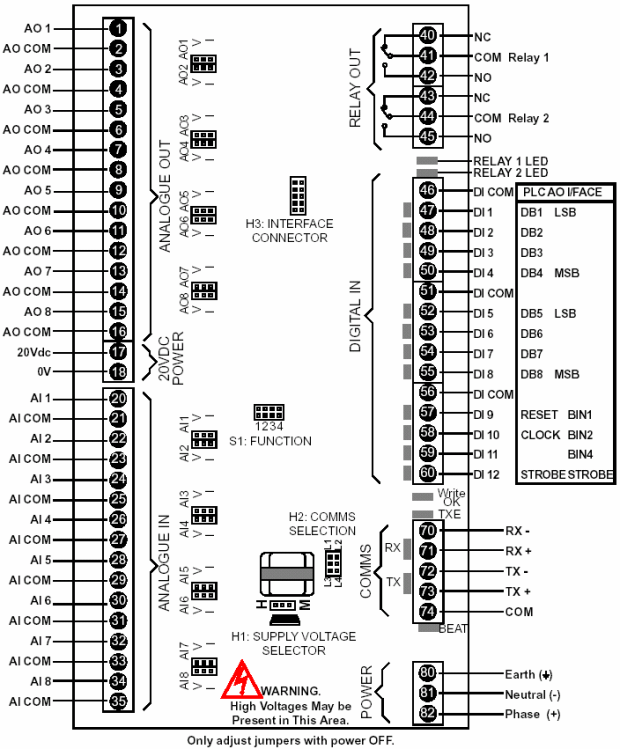

Connections for the 2100-AO

Terminals and Layout:
