Product Specifications:

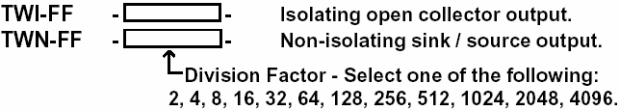

The TWN-FF & TWI-FF are designed as an interface between a Trimec DP490 Flow Transducer and a PLC. The TWN-FF & TWI-FF divide the frequency of the pulses from a DP490 to an output frequency a PLC can Register without missing counts. For example if a DP490 is measuring flow that results in an output frequency of 40Hz, and the maximum PLC input frequency is 10Hz, the TWN-FF & TWI-FF would be ordered with a division factor of four.
The TWN-FF & TWI-FF can be powered by the PLC's 24Vdc power supply. The output is a 50:50 mark space ratio, and can be directly connected into most PLC digital inputs.
| Input | -Maximum Range | 100kHz. (5V p-p input). |
| -Trigger Level | 2.5Vdc. | |
| -Amplitude | 5~30Vdc Squarewave. | |
| -Maximum Range | 5kHz. | |
| Output | -Function | Squarewave Output; 50:50 Mark \ Space Ratio. |
| -Sink/Source | -Amplitude | (Power Supply) -2V. (No Load.) |
| -Load | Limited to Sink \ Source 100mA @ 24Vdc. (50mA @ 12Vdc.) | |
| Maximum Load = 100mA @ 24Vdc. | ||
| Suitable for most optocoupler inputs. | ||
| -Open Collector | 30Vdc, 100mA Max. | |
| Other variations available on request. | ||
| Isolation Test Voltage | (TWI-FF Only) | Input to Output 1600Vdc for 1min. |
| Power Supply | 11~28Vdc. | |
| Current Usage | 15mA (No Output Load.) | |
| EMC Compliances | Emissions EN55022-A, Immunity EN 50082-1, <1% Effect FSO Typical. | |
| Operating Temperature | 0~70C. | |
| Storage Temperature | -20~80C | |
| Operating Humidity | 5~85%RH Max. Non-condensing. | |
| Construction | Polyamide Thermoplastic Rail Mount. | |
| Dimensions | L=79mm, W=22.5mm, H=85mm. |
