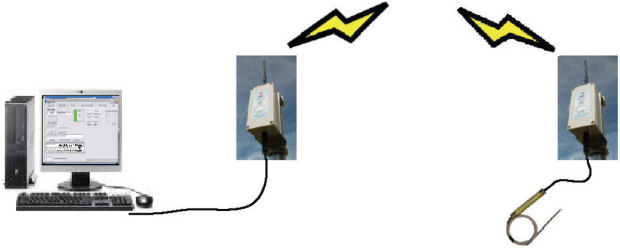

Tel-Link Radio Modems - Data Logger Connection:

Product Specifications:

Download Sales Brochure (MicroScan)

Details:

Tel-Link Radio Modems are used for long-range, high speed wireless communications. Powered by FCC and ETSI approved MaxStream radio modules with frequency hopping spread spectrum capability, the Tel-Link Radio Modems operate in the 2.4GHz license-free ISM band (Industrial, Scientific and Medical bands). Up to 15km range can be achieved with a High Gain Antenna (Line of Sight).

Features:

• True peer-to-peer networking (no Master radio needed).
• Networking features allow up to 7 independent pairs (networks) to operate in close proximity.
• FCC and ETSI approved MaxStream radio modules.
• 2.4GHz license-free ISM band (Industrial, Scientific and Medical);
  • Certified for use in New Zealand, Australia, USA, Canada and Europe.
• Spread spectrum type frequency hopping.
• Supports all MicroScan Interface baud rates (1200 to 57600 Baud).
• 19.2 kbps over-the-air data rates.
• Up to 65,000 network addresses available.
• Signal strength reporting for link quality monitoring and debugging.

Ordering Information:

Model	Description
Tel-Link Radio Modem 2.4GHz
TL-485O-24	RS485/422 Outdoor c/w Outdoor 3dBi sleeve di-pole whip Antenna and 2m data cable. Supplied with a stainless steel mounting bracket and U bolts. Power supply requirements: 12Vdc @ 300mA.
PSW-2-12-H	If you require a 12Vdc, 300mA power supply (100~264Vac Input).
Antenna Options (Used when greater distances are involved):
	Tel-Link Radio Modem Antennas 2.4GHz
TL-OD24-8	Outdoor 8dBi Omni Directional Monopole Antenna c/w 3m coax cable.
TL-PG24-15	Outdoor 15dBi Directional Parabolic Grid Antenna c/w 3m coax cable.

Performance:

Outdoor Urban;
With supplied 3dBi Whip - Up to 180m
Outdoor Ideal* Conditions;
With TL-OD24-8 - Up to 5km	With TL-PG24-15 - Up to 15km
Notes: *Ideal Conditions = mounted on 2m pole with line of sight and no surrounding trees and buildings, using supplied coax cable only. Test results show impressive distance results under ideal line of sight conditions. These distances are rapidly reduced when obstructions to 'line of sight' are experienced. Use only Intech TL Antennas with Tel-Link Radio Modems. For outdoor antennas, the supplied coax-seal must be used between exposed connections to protect from moisture corrosion.

Note:

Tel-Link Radio Modems can also be used for wireless connection of MicroScan systems.
