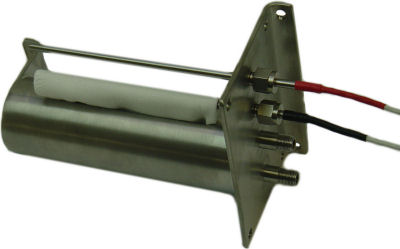

WDT-DW - Wet & Dry Bulb Humidity Tank:

Product Specifications:

Download Humidity Measurement Brochure

Download Datasheet

Features:

• Humidity tank with Wet & Dry sensors.
• For the measurement of Relative Humidity, RH%.
• Constructed of 316 stainless steel.

The WDT-DW wet and dry bulb humidity tank would normally be wired to a IN-HWD (rev 2) Humidity and Temperature Indicator/Transmitter (or similar) with two 4~20mA outputs representing 0~100% RH plus 0~100degC. Because the WDT-DW is made to the DIN standard with Band 5 Pt100 sensors, the accuracy of the system is more reliant on the wet and dry bulb transmitter.

Ordering Information:

WDT-DW	Sensors; RTD, Pt100, Band 5. 4.7ø x 150. Others by request. Fill port; 1/8”BSP nipple. Overflow port; 1/8”BSP nipple. Mount; Wall or duct mount. Cable; 4 metres.
WDT-WICK	Spare wick for wet bulb sensor

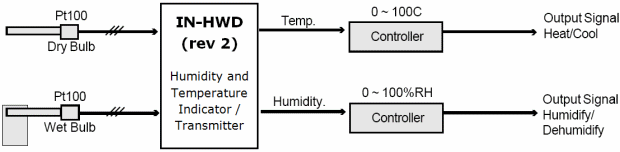

Connection Example:

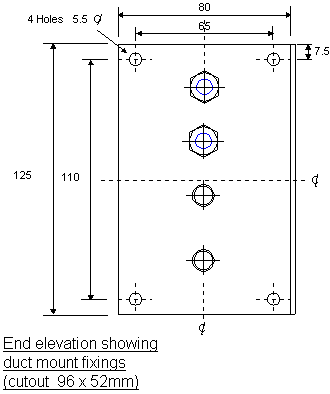

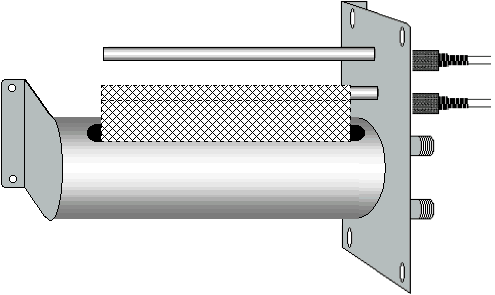

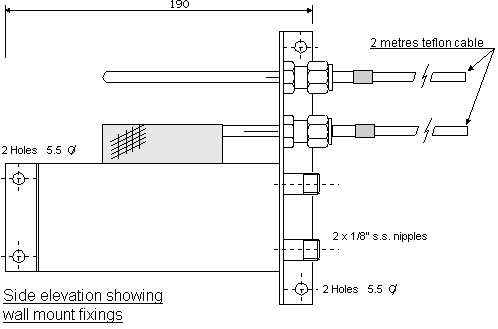

Drawings:
