XU4 (4 Wire) - USB Programmable Universal Input Single Transmitter:

Product Specifications:

Download XU Sales Brochure

Download Installation Guide

Download XU Programming Software

Note: Requires the XU-USB programming key.

Download Print Quality Image - 0.32MB.

Features:

• Programmable via USB (requires the XU-USB programming key).
• No power supply or calibration required during programming.
• Input Types:
  • RTD Pt100 and Pt1000.
  • Thermocouple B, E, J, K, N, R, S, T.
  • For RTD and Thermocouple; Output is Linear with Temperature.
  • mA, mV and V.
  • Potentiometer.
  • 32 point curve fitter for mA, mV, V inputs.
• Input to Output Isolation 3750Vac.
• High Accuracy 0.1%.
• Universal AC/DC Power Supply; 20~265Vac or 21~265Vdc.
• Reverse Polarity Protection.
• Heartbeat Status LED.
• Zero Adjust pot.
• Case Temperature range -20°C to +80°C.
• Compact DIN Rail Mount Enclosure.
• Easy to Install.
• Low Cost.

Ordering Information:

XU4	USB Programmable Universal-Input Standard = RTD Pt100, 0~100°C Input; 4~20mA Output; Upscale.
XU-USB	USB Programming Key Note: the same XU-USB can be used to program any of the XU Series transmitters - just change the included adaptor plug for DIN or In-Head!

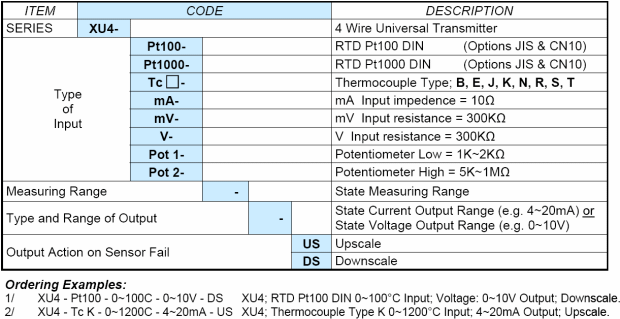

Note: The table below shows the USB programmable input types etc for the XU4:
The XU4 can be pre-programmed before dispatch or is easily programmed using the XU-USB programming key and the free XU programming software.
