IN-uP4 - Universal Input Indicator:

Product Specifications:

Download Sales Brochure
Download Installation Guide
Download uP Configure Programming Software

Note: Requires the XU-USB (Rev 1) programming key.

Download Print Quality Image - 0.33MB.

Click for large view

Description:

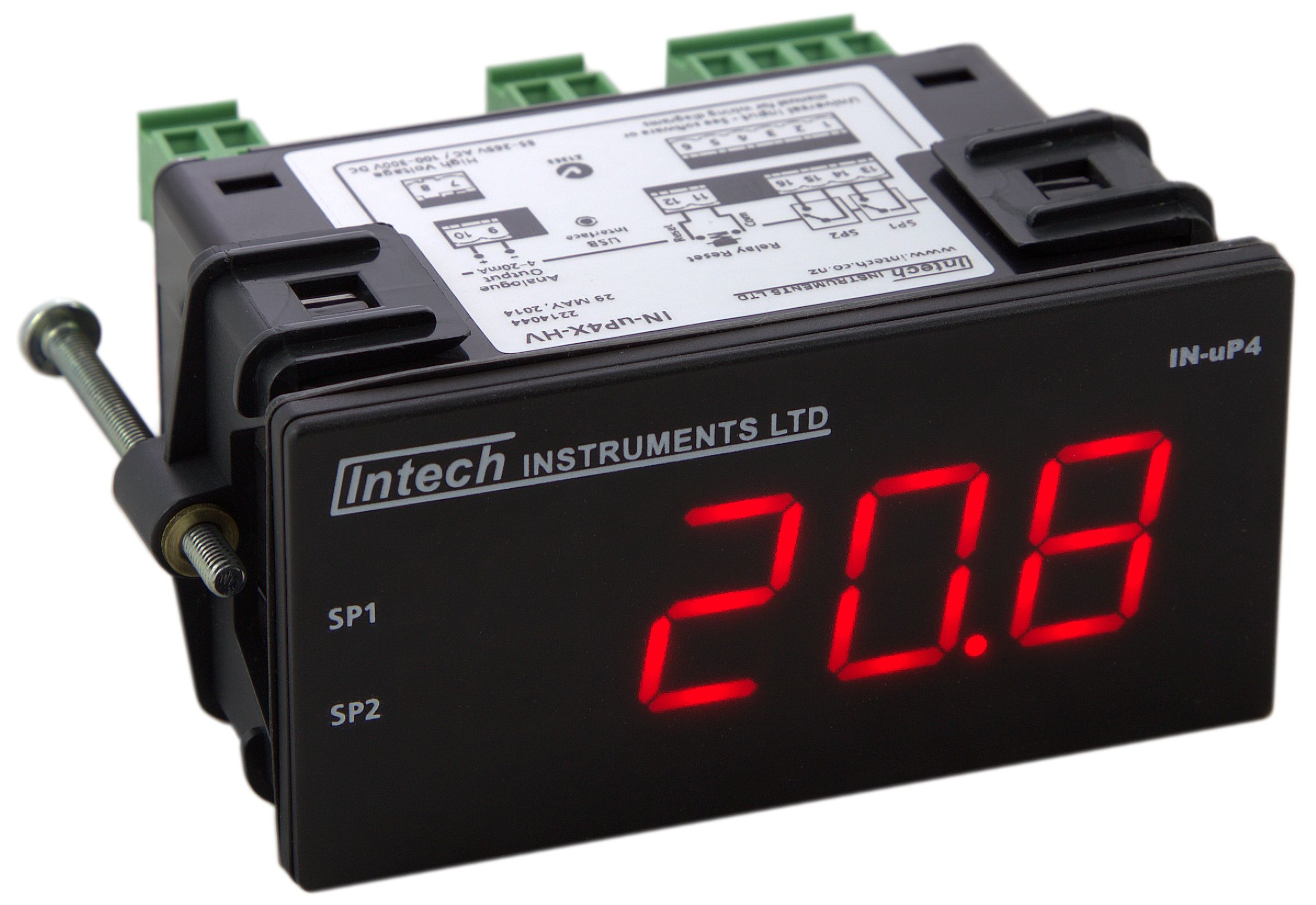

The IN-uP4 is a universal single input indicator, which makes interface with a wide range of sensors easy.
The IN-uP4 has a 4-digit LED display. An option to add two relay outputs (with two setpoint indicator LED’s), and one 4~20mA analogue output is available.
Setup and calibration is simple, using ‘uP Configure’ software, with step-by-step instructions.

Features:

• Universal Input.
• Programmable via USB Port using uP Configure software and XU-USB (Rev 1) key.
• Simple setup and calibration.
• 4-digit LED Display.
• Option to add Two Relay Outputs (with two setpoint indicator LED’s), and One 4~20mA Analogue Output.
• Wide Range of Power Supply options.
• IP65.
• Low Cost.

Ordering Information:

Item	Code				Description
Series.	IN-
Outputs.		uP4-			No Outputs.
		uP4X-			Two Relay Outputs plus One 4~20mA Analogue Output.
Power Supply.				HV	85~265Vac / 100~300Vdc.
				LV	24Vac / 19~40Vdc.



Ordering Example:

IN-uP4-LV

Universal Input Indicator with No Outputs and 24Vac or 19~40Vdc Input Power Supply.

Note: The IN-uP4 Universal Input Indicator is pre-programmed for RTD Pt100 input as standard.

To program the IN-uP4 requires the XU-USB (Rev 1) Programming Key:

XU-USB (Rev 1)
