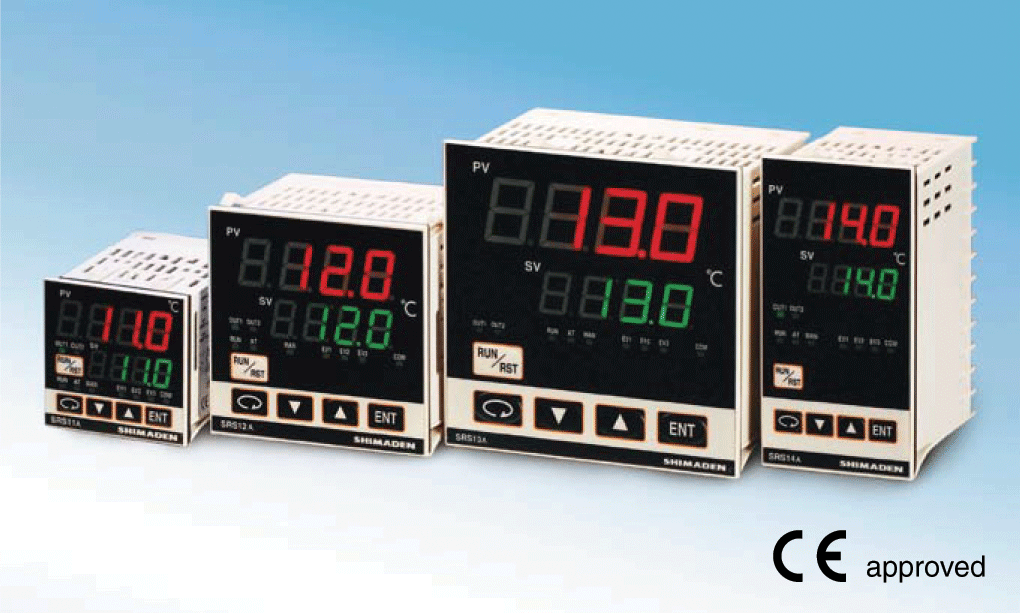

□ Multi-input and multi-range performance
□ Small instrument depths (62mm - 65mm) save space,
thus securing a larger installation area.
□ SV setting: 3 points
□ PID Value: 3 types
□ 2-output heating and cooling control available (optional)
□ Total 32 steps Program available (optional)
(1-4 pattern, 32-8 step)
□ RS-485 Interface available (optional)
(Master/slave function, Modbus/Shimaden Protocol)
□ Heater break/heater loop alarm (optional)
□ A wide selection of additional functions (optional) is available
to suit various needs.
□ Possible to switch off SV/PV value by key operation
□ Parameter mask (non-display) / lock (key lock) function
