LPI-T - Thermocouple Transmitter:

Product Specifications:

Download Installation Guide

Features:

• Available for Types J, K, N, R, S, T.
• Field Programmable Input Ranges.
• Output Linear With Temperature.
• Internal Cold Junction Compensation.
• Isolated Input to Output 2.0kV.
• High Accuracy.
• 40~200mV Output Test Signal.
• LED Indication of Loop Current.
• Low Cost.
• Easy to Install.
• Compact DIN Rail Mount Enclosure.
• Available Standard or Special Calibration.
• Reverse Polarity Protection.

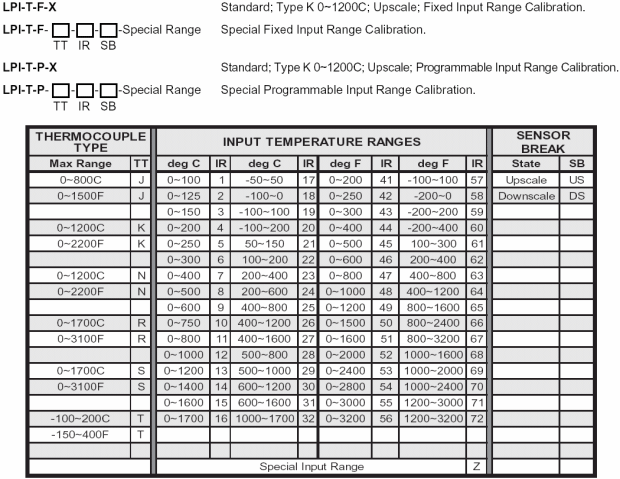

Ordering Information:

Please note that the input range must be within the specified min / max range of the thermocouple type:
