pH-HR - pH/Temperature Data Logger:

Product Specifications:

Download Datasheet

Download Instruction Sheet on Taking good care of pH probes

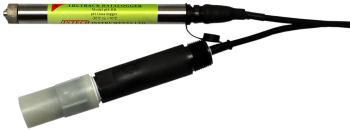

pH-HR shown with M-11-Pt100 pH probe and pH-HR Plug Set

The pH-HR is a small three channel high resolution (12 bit) pH and Temperature data logger housed in a rugged 304 stainless steel case.

The logger connects to an external pH probe and also has the option of connecting to an external Pt100 temperature probe to allow temperature compensation of the pH reading. Many pH probes have a built in Pt100 temperature sensor for convenient connection.
The pH-HR logger also has an internal temperature sensor for convenient logging of ambient temperature if desired.

1 to 5 year battery life depending on usage as below, user replaceable. Data is retained in the event of battery failure. Battery Status Monitor in OmniLog Software.

• Warning: When using the Average, Maximum or Minimum reading(s), the loggers reads the attached sensor(s) every second. This will reduce battery life.
• Using the logger in temperatures below -5°C (23°F) will reduce battery life.

Ordering Information:

Order code:	Description:
pH-HR	pH / Temperature (Does not include probe)
M-## pH probe	pH probe for pH-HR. Note: We recommend using a pH probe that has a built in Pt100 temperature sensor for the best possible accuracy with the pH-HR.
pH-HR Plug Set	Fit plug set to pH probe for use with pH-HR logger.
Download options:
SWDL-DLC3USB SWDL-DLC3	OmniLog Software (used with all TruTrack data loggers): OmniLog Installation CD and USB download cable Kit OmniLog Installation CD and RS232 download cable Kit
DLC3USB DLC3	Spare download cable: HR Series USB download cable HR Series RS232 download cable
