Weather Sensor Transmitters (4~20mA Outputs):

Product Specifications:

Download Sales Brochure / Datasheet

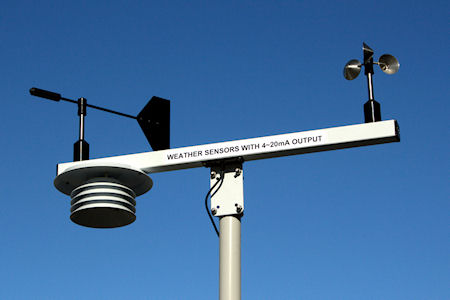

Fully Mounted: WS3-WD-TB-CL with THP-CL

Features:

• Sensors are available for monitoring each of the following:
  • Air Temperature.
  • Humidity.
  • Barometric Pressure.
  • Light Energy.
  • Wind Speed.
  • Wind Direction.
  • Rainfall.
• 4~20mA output signals from all sensors (loop powered).
• Fully mounted type is supplied with T-Bar equipment mounting arm, complete with attachment plate and two 50mm U bolts, ready for mounting to pipe or bolting to posts or buildings.

Description:

Weather Sensor Transmitters are tools for the observation and recording of meteorological data.

The sensors can monitor air temperature, humidity, barometric pressure, light energy, wind speed, wind direction and rainfall.

The output signals from the sensors are industrial standard 4~20mA (loop powered). This allows for easy integration into a SCADA or PLC monitoring system.

Ordering Information:

Individual Sensor Options:

H-CL-E	Humidity sensor c/w 1.5m cable
T-CL-E	Temperature sensor c/w 1.5m cable
BP-CL-E	Barometric Pressure sensor c/w 1.5m cable
LE-CL	Light energy c/w base mounting plate and 5m cable
WS3-CL	Wind speed (3 cup) c/w 5m cable (1.5m/sec starting speed)
WS6-CL	Wind speed (6 cup) c/w 5m cable (0.45m/sec starting speed)
WD-CL	Wind direction c/w 5m cable
RAIN-CL	0.2mm Rain Gauge (4~20mA output via included PI-F transmitter)
Mounting Options:
LB	L-Bar with attachment plate and two 50mm U bolts
TB	T-Bar with attachment plate and two 50mm U bolts
Shield	Solar Radiation Shield - used for more accurate measurement of temperature, humidity and barometric pressure sensors (does not include sensors)

Fully Mounted Options:

WS3-WD-TB-CL	Wind speed 3 cup (starting speed = 1.5m/sec), wind direction, mounted on Tbar mounting arm c/w 5m cable.
WS3-WD-LE-TB-CL	Wind speed 3 cup (starting speed = 1.5m/sec), wind direction, light energy, mounted on Tbar mounting arm c/w 5m cable.
Options:
WS6	Fit WS6 (Wind speed 6 cup), instead of WS3 on above Tbar options (used for lower starting speed = 0.45m/sec).
THP-CL	Temperature, Humidity and Pressure, all in Solar Radiation Shield c/w 5m cable, mounted on the above Tbar options.
