XI 4~20mA Isolator Series:

Download XI Sales Brochure

XI-L

XI-L - Loop Powered Isolator(s)

Isolating 4~20mA Input to 4~20mA Output Loop Powered Transmitter

Download Installation Guide

Features:

  • Input to Output Isolation 1kV.
  • High Accuracy 0.1%.
  • Reverse Polarity Protected.
  • Compact DIN Rail Mount Enclosure.
  • Available With 1, 2 or 4 Transmitters per Enclosure.
  • Easy to Install.
  • Low Cost.

XI-L

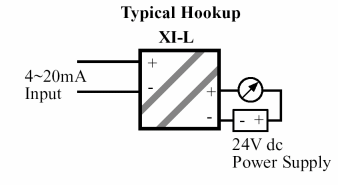

XI-L Typical Hookup

Ordering Information:

XI-L1
XI-L2
XI-L4		 One Unit per Enclosure.
Two Units per Enclosure.
Four Units per Enclosure.

Dual Output Signal Isolators:

Use the XI-L2 dual channel model. Wire the 4~20mA input in series through both inputs on the transmitter, and the 2 outputs are totally isolated. The outputs are loop powered so you need a separate 24Vdc power supply for each channel.



XI-P

XI-P - Input Powered Isolator(s)

Isolating 4~20mA Input to 4~20mA Output Input Powered Transmitter

Download Installation Guide

Features:

  • No Power Supply Needed - Input Powers Transmitter.
  • Ideal for isolating a typical 4~20mA loop.
  • Also good for Line Filtering at the receive end of Line.
  • Input to Output Isolation 1kV.
  • High Accuracy.
  • Reverse Polarity Protected.
  • Compact DIN Rail Mount Enclosure.
  • Available With 1, 2 or 4 Transmitters per Enclosure.
  • Easy to Install.
  • Low Cost.

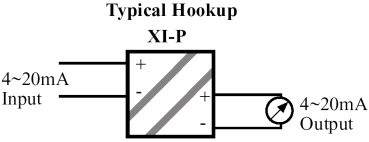

XI-P Typical Hookup

Important Note: Disconnecting the output circuit on the XI-P will cause loss of the input signal. This is common to all Input Powered transmitters.

Ordering Information:

XI-P1
XI-P2
XI-P4		 One Unit per Enclosure.
Two Units per Enclosure.
Four Units per Enclosure.
