XJ4 (4 Wire) Universal Input Single Transmitter:

Product Specifications:

Download XJ Sales Brochure

Download Installation Guide

XJ4-D Connection of Multiple Units in Series or Parallel (used to attain the required Output Current or Output Voltage):
Download Datasheet


Features:

  • Field Programmable Bi-Polar Input \ Output Ranges.
  • Input Types:
    - mV, V & mA.
    - RTD Pt100.
    - Differential RTD.
    - Thermocouple (T/C).
    - Bridge \ Strain Gauge.
    - Potentiometer.
    - Resistance.
  • Input to Output Isolation 2.0kV.
  • High Accuracy 0.1%
  • Universal AC \ DC Power Supply.
  • Transmitter Power Supply.
  • Compact DIN Rail Mount Enclosure.
  • Available Standard or Special Calibration.
  • Low Cost.



Ordering Information:

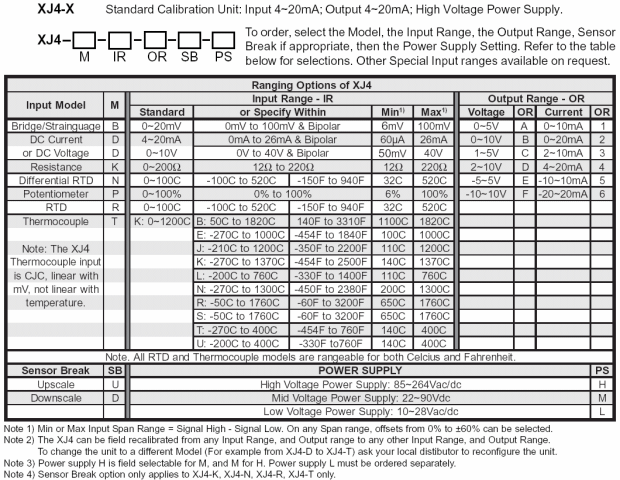

XJ4 ordering table

XJ4 Diagram:

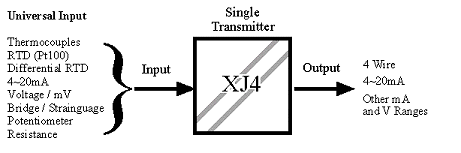

XJ4 Diagram
