XU2HI / XU2HN (In-Head, 2 Wire) - USB Programmable Temperature Input Single Transmitters:

Product Specifications:

Download XU Sales Brochure

Download XU2HI (Isolating) Installation Guide

Download XU2HN (Non-Isolating) Installation Guide

Download XU Programming Software

Note: Requires the XU-USB programming key.

Download XU2HI Print Quality Image - 0.21MB.

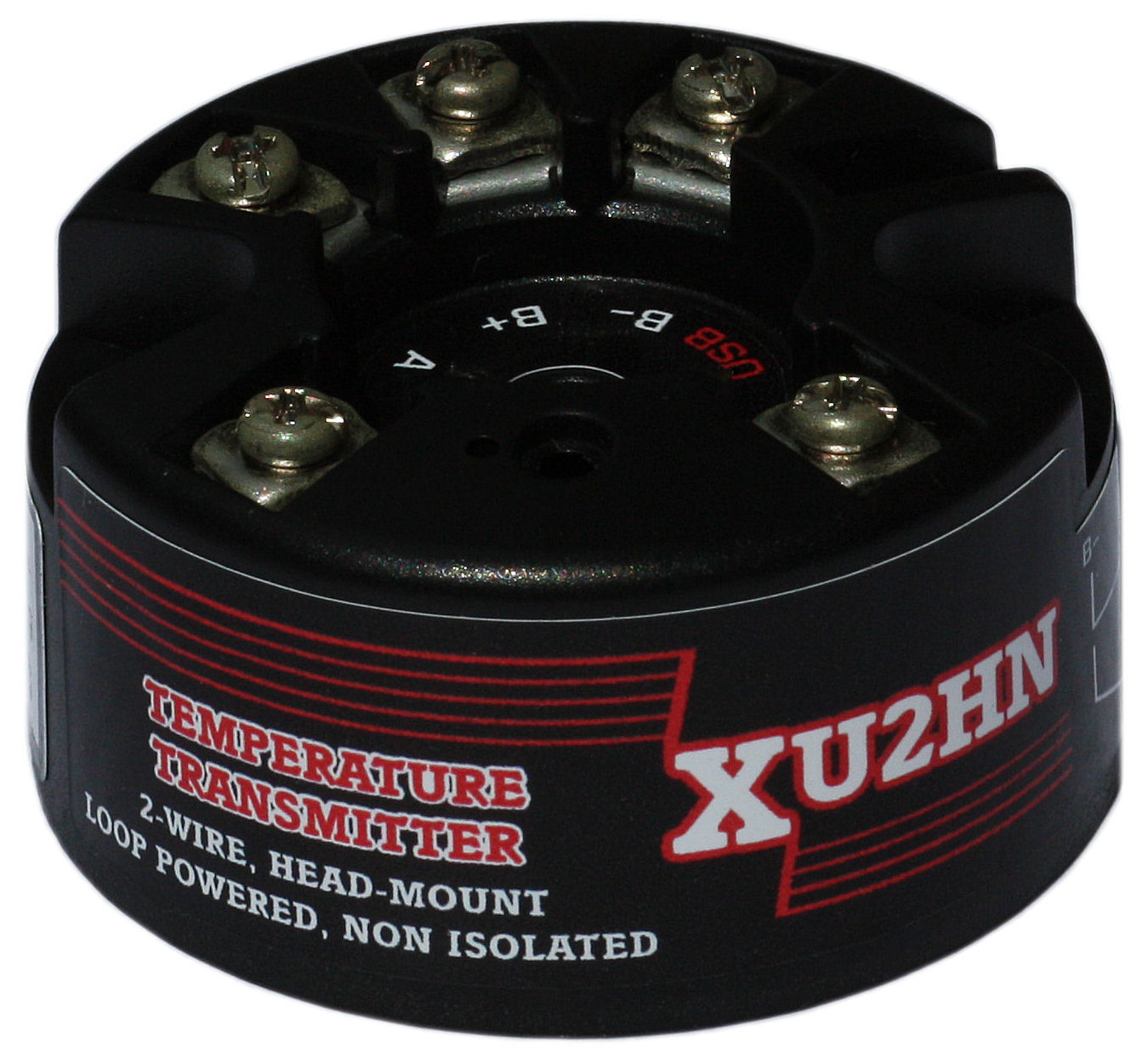

Download XU2HN Print Quality Image - 0.24MB.

Click for large view

Features:

• Programmable via USB (requires the XU-USB programming key).
• No power supply or calibration required during programming.
• Temperature Input Types:
  • RTD Pt100 and Pt1000.
  • Thermocouple B, E, J, K, N, R, S, T. (XU2HI only).
  • Output is Linear with Temperature.
• High Accuracy 0.1%.
• Compact Industrial Head Mount Enclosure.
• Reverse Polarity Protection.
• Easy to Install.
• Low Cost.

Ordering Information:

XU2HI	USB Programmable RTD or Thermocouple Temperature Input. Standard = RTD Pt100, 0~100°C Input; Upscale; 4~20mA Output (Loop Powered). Input to Output Isolation 3750Vac. Heartbeat Status LED. Zero Adjust pot. Case Temperature range -20°C to +85°C.
XU2HN	USB Programmable RTD Temperature Input. Standard = RTD Pt100, 0~100°C Input; Upscale; 4~20mA Output (Loop Powered). Non-Isolating. Case Temperature range -20°C to +55°C.
XU-USB	USB Programming Key Note: the same XU-USB can be used to program any of the XU Series transmitters - just change the included adaptor plug for DIN or In-Head!

Note: The tables below show the USB programmable input types etc for the XU2HI / XU2HN:
The XU2HI / XU2HN can be pre-programmed before dispatch or are easily programmed using the
XU-USB programming key and the free XU programming software.

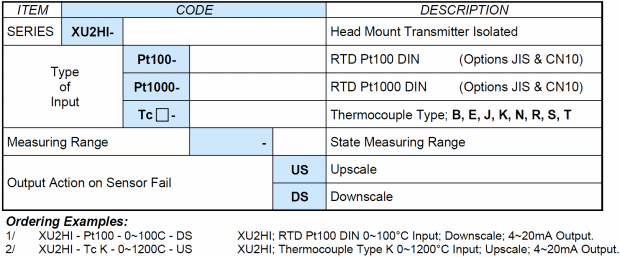

XU2HI Ordering Table:

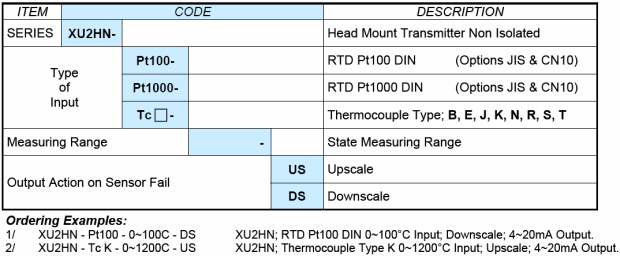

XU2HN Ordering Table:

---
