Custom Built LLT Submersible - Level Transmitter:

Product Specifications:

IN-LLT

Description:

The IN-LLT is a media compatible level transmitter specifically designed for continuous liquid level monitoring.

The transmitters are made from stainless steel with an internal mounted piezoresistive pressure sensor.

The IN-LLT is custom built to your specific requirements - see the Ordering Information below:

Note: The IN-LLT is also known as SLT-Submersible.

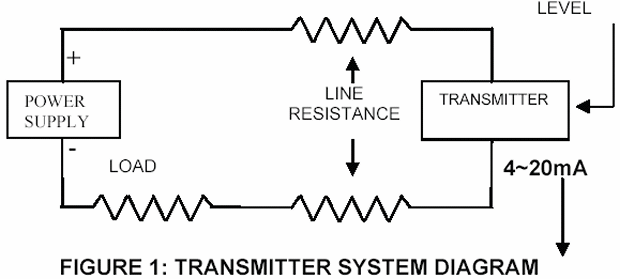

System diagram

Level transmitter. Transmitter enclosed in a 316 SS envelope. Output; 4~20mA loop powered. Diameter; Max 90mm. Ranges; From 0 ~ 2.5m to 0 ~ 100m. For each metre greater than 10m. add per metre…. For depths greater than 100m, contact Intech.
Model	Description
IN-LLT-M	Transmitter; Jumo Midas (fixed range) Standard. Up to 100m.
IN-LLT-P	Transmitter; Jumo P30-504 (zero & spanadjustable). Standard. Up to 100m.
IN-LLT-F	Transmitter; Jumo P30-571. Flush diaphragm. Up to 100m.

Level transmitter. Transmitter modified for hose adaptor. Output; 4~20mA loop powered. Diameter; Max 35mm. Ranges; From 0 ~ 2.5m to 0 ~ 100m. For each metre greater than 10m. add per metre…. For depths greater than 100m, contact Intech.
Model	Description
IN-LLT-J	Transmitter; Jumo P30-504. Standard. Up to 100m.
IN-LLT-JF	Transmitter; Jumo P30-571. Flush diaphragm. Up to 100m.

LPN-OVP (Rev 1)	We strongly recommend that an overvoltage protection device is used with the IN-LLT if long runs of cable are involved in the installation; to protect against potential Lightning strike or earth potential rises.

You may also like to consider using the Intech IN-LLT-C submersible level transmitters. Intech carries stock in many standard ranges as listed.
