Shimaden Lite Controller Software:

Product Information:

Download Sales Brochure

Download Now - 10.2MB - Mar 22, 2012 - (Ver 1.4.1)

Shimaden Lite Screen

Shimaden Lite Software is "FREE" with Shimaden controllers. With the wizard set-up feature the program automatically locates the controllers and configures the software ready for use, no programming is required. All you need is any Shimaden controller with the communications option fitted. It's the best and cheapest way to get your process on line as a convenient mini SCADA system.

Shimaden Lite supports the following:

Basic controller operation, COM mode, setvalue changes, Event settings, pattern editing, start and stop etc, but NOT in depth controller settings such as analogue out modes etc. Also note that the software does not allow controller settings to be downloaded to a file and sent to another controller.
Shimaden Lite is a simple user interface for operator type changes to a controller.

Please Note:
Shimaden Lite should only be used on Windows 7, Vista or XP and is not a replacement for a full SCADA system. For information on Intech Instruments' full SCADA system please view MicroScan SCADA.

Controllers/Indicators Supported (Shimaden Lite 1.4.1):

RS485 or RS232*:

RS422 or RS232*:

SR90 Series FP21
SD16A / SD16 SR25
SD24 SD20
SD24 SR73A
SR80 Series SR253
SRS10A Series


* RS232 will connect to one controller only.
* 2400-IS / 2100-IS / 2100-NS not required when using RS232.
^ The MR13 has not set value (SV) facility from the computer.


Auto seek: Find controllers automatically.
Auto configuration: Shimaden Lite automatically adopts controller configuration.
User friendly controller configuration from computer.
Password protection.
Trend graph of PV & SV.
Trend graph has most recent records
Scan settings 1 sec, 15 sec, 1 min.
Controller identification label.
CSV Report generation for viewing data in Excel.
Alert window for showing status of controller events.

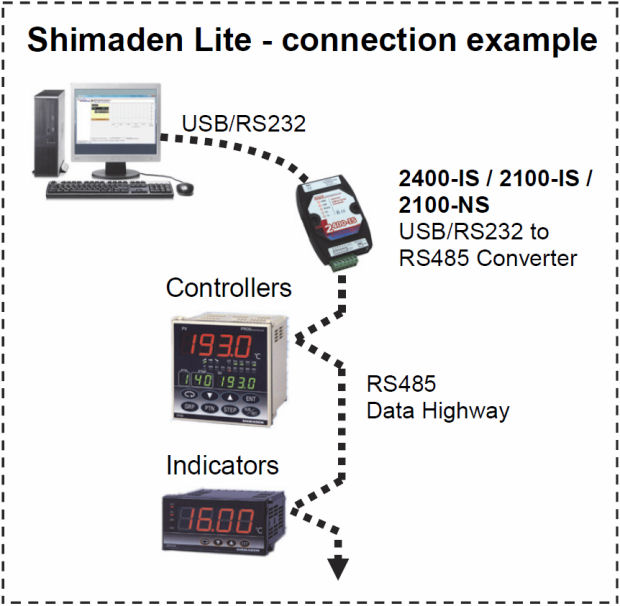

Connection Example (RS485):

Shimaden Lite Connection Example

Installation Notes:
